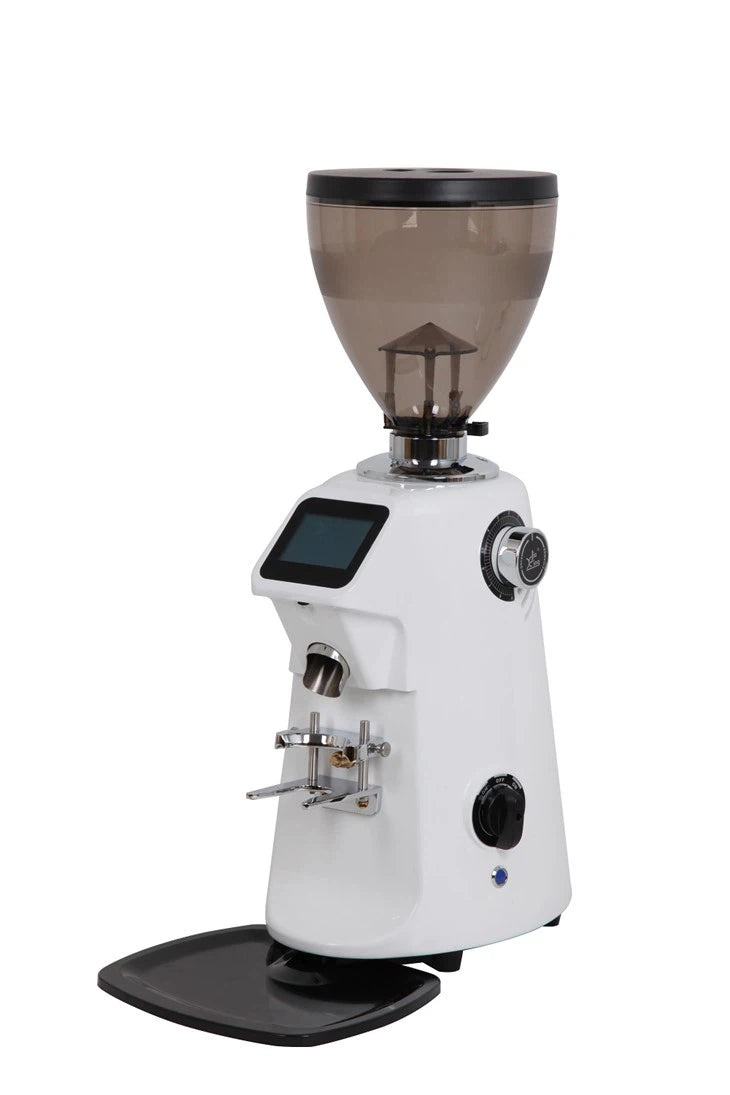

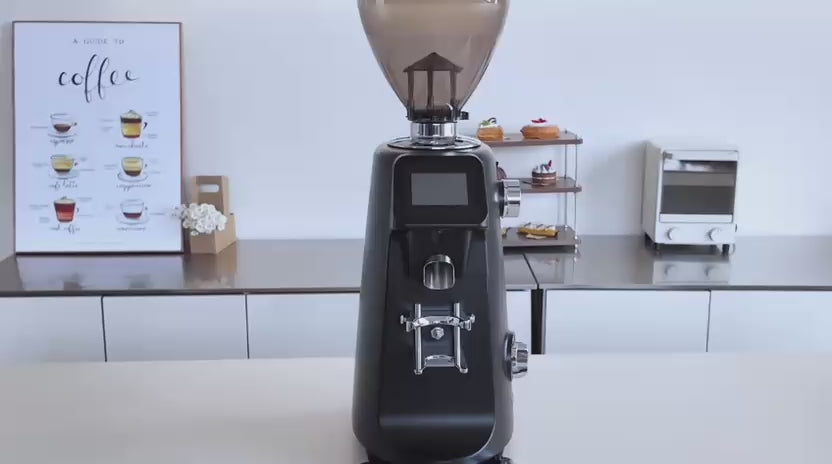

JX-680P COMMERCIAL COFFEE GRINDER

74mm Flat Burr • Grind-by-Weight • Timed Dosing • 450W Motor • 1.2kg Hopper

The JX-680P Commercial Coffee Grinder is designed for professional cafés, specialty coffee shops, restaurants, hotels, kiosks, and baristas that require a fast, controlled, and repeatable espresso grinding workflow.

Its standout feature is its dual dosing system — Time Mode and Weighing Mode. With grind-by-weight capability, the JX-680P allows the barista to set a target coffee dose by weight, helping improve dosing consistency while reducing the need to manually weigh every ground dose during busy service.

Combined with 74mm flat burrs, a 450W commercial motor, 1400 RPM operating speed, and a large 1.2kg bean hopper, the JX-680P is built to serve as a primary espresso grinder in a professional coffee bar.

⚖️ GRIND-BY-WEIGHT TECHNOLOGY

The defining feature of the JX-680P is its integrated weighing function.

Instead of controlling the dose only through grinding time, the grinder can dispense coffee according to a target weight.

This helps cafés achieve a more repeatable dosing workflow, particularly when multiple baristas are operating the same espresso station.

Two dosing modes:

WEIGHING MODE — Grind according to the selected target weight.

TIME MODE — Grind according to a programmed grinding time.

This gives the café flexibility to choose the workflow that best suits its operation.

☕ 74MM FLAT BURRS

The JX-680P features large 74mm flat burrs, providing a substantial grinding surface for professional espresso preparation.

Large flat burrs are particularly suitable for commercial environments where grinding efficiency and repeatability are important throughout service.

Burr Diameter: 74mm
Burr Type: Flat Burr
Manufacturer-Rated Burr Life: Approx. 750kg

⚡ 450W COMMERCIAL MOTOR

A 450W motor operating at approximately 1400 RPM powers the 74mm burr system.

The grinder has a manufacturer-rated grinding capacity of approximately:

10–19 KG/HOUR

Actual output will depend on the coffee beans, roast level, grind setting, dose, and operating conditions.

🫘 LARGE 1.2KG HOPPER

The 1.2kg bean hopper is designed for commercial café workflow.

Unlike a single-dose grinder, the JX-680P can hold a substantial quantity of beans, reducing the need for frequent refilling during busy service periods.

This makes it particularly suitable as a dedicated house-blend or espresso grinder.

🎯 BUILT FOR CONSISTENT CAFÉ WORKFLOW

The JX-680P is designed around the needs of a working espresso bar:

Load → Dial In → Set Dose → Grind → Extract

The combination of a large hopper, programmable dosing, grind-by-weight functionality, and commercial-size burrs helps streamline preparation during peak service.

It is especially useful for businesses where several baristas share one espresso station and maintaining a repeatable workflow is important.

🏪 RECOMMENDED FOR

• Specialty Coffee Shops
• Commercial Cafés
• Coffee Kiosks
• Restaurants
• Hotels
• Bakeries with Coffee Service
• Barista Training Centers
• Coffee Roasters
• High-Volume Espresso Stations
• Professional Coffee Businesses

📋 TECHNICAL SPECIFICATIONS

Model: JX-680P
Type: Commercial Coffee Grinder
Dosing System: Time Mode + Weighing Mode
Burr Type: Flat Burr
Burr Diameter: 74mm
Motor Power: 450W
Motor Speed: 1400 RPM
Grinding Capacity: Approx. 10–19kg/hour
Bean Hopper Capacity: 1.2kg
Body Material: Aluminum
Hopper Material: Polycarbonate (PC)
Voltage: 110–240V*
Frequency: 50/60Hz*
Dimensions: Approx. 41 × 25 × 63.5cm
Net Weight: Approx. 15.5kg
Gross Weight: Approx. 18.5kg
Available Colors: Black / White*

*Voltage configuration, plug type, color, and other specifications may vary depending on the unit supplied. Please confirm before ordering.

JX-680P VS JX-680

Both models are designed for professional commercial coffee grinding and feature a 74mm flat burr system, 450W motor, 1400 RPM operation, and 1.2kg hopper.

The key difference is the dosing system:

JX-680P
⚖️ Grind-by-Weight
⏱️ Timed Dosing
☕ Designed for cafés wanting greater control over dose consistency

JX-680
⏱️ Timed Dosing
☕ Straightforward commercial grinding workflow

If your café prioritizes dose control and repeatability, the JX-680P is the more advanced option.

WHY JX-680P?

In espresso preparation, a small difference in coffee dose can affect the resulting extraction.

The JX-680P addresses this part of the workflow by combining commercial grinding performance with integrated weight-based dosing.

74mm Flat Burrs.
450W Commercial Power.
1.2kg Hopper.
Grind-by-Weight Precision.

JX-680P

Grind by weight. Built for consistency.

📩 Message us for price, current availability, warranty coverage, and complete coffee shop equipment packages.
